Formulations

Primer 57 is a single component, solvent-free, reactive monomer-based product designed to promote the cure speed of Hernon® anaerobic adhesives and sealants. Primer 57 is used where increased cure speed of Hernon® anaerobic products is required, and for difficult to bond applications where galvanized steel or zinc electroplated surfaces are involved. This product was specially formulated for increasing bond integrity on dichromated surfaces.

Primer 50 is a single component, non-CFC solvent-based product designed to promote the cure speed of Hernon® anaerobic adhesives and sealants. Primer 50 is used where increased cure speed of Hernon® anaerobic adhesives and sealants is required. It is especially recommended for applications with passive metals or inert surfaces and with large bond gaps. It is particularly recommended for cure conditions below 15°C. Primer 50 meets the requirements of ASTM D5363 (Grade N) and MIL-S-46163A Grade F.

ReAct® 766 is a tough acrylic adhesive designed primarily for bonding permanent magnets. ReAct® 766 has also found wide acceptance in a variety of structural bonding applications due to its versatile performance capabilities. ReAct® 766 provides high tensile strength while maintaining excellent product flexibility. This results in tough durable bonds with outstanding impact and pee1 resistance. Temperature resistance from –40°C (-40°F) to 204°C (400°F). ReAct® 766 is a single component adhesive used in combination with Hernon® Activator 59 or Activator 63 for curing at room temperature. The adhesive may also be heat cured at 150°C.

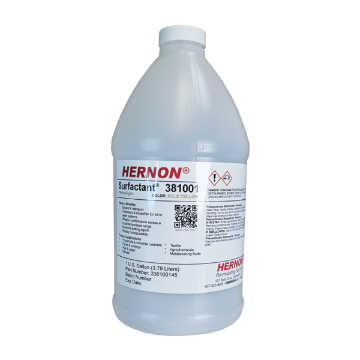

Hernon® Porosity Sealant (HPS) Surfactant 381001 is a single component product designed to be used as wetting agent.

Fusionbond® 371 is a two components methacrylate adhesive. It is specially formulated for structural bonding of thermoplastics, metal, wood and composite assemblies. Fusionbond® 371 is an excellent choice for composite bonding applications in the marine, automotive and construction industries because it requires virtually no surface preparation. Fusionbond® 371 provides toughness at temperatures from -67 to 250°F.

Ultrabond® 3443 is a single component, tri-cure conformal coating formulated for bonding glass to glass or glass to metals. Ultrabond® 3443 is excellent for bonding and tacking many parts. Ultrabond® 3443 can also be cured with heat above 200°F (93°C) or Activator 56 or 59. Exposure to a high intensity UV light will cure these adhesives to a dry, hard surface.

Ultrabond® 774 is a one component adhesive which cures when exposed to ultraviolet radiation and/or visible light of sufficient intensity.

Tuffbond® 395 is a single component, high temperature resistant, heat activated epoxy. It cures to a high-performance thermoset system with excellent adhesion properties to a wide variety of substrates. Tuffbond® 395 will change from amber to a reddish brown upon cure. Bonding the voice coil to the cone has been a challenge for engineers, specifically when the adhesive temperature resistance requirement is above 200°F (93°C). Two component epoxy systems have been most commonly used for this application, but limitations such as mixing ratio, cure speed, potential solidification in equipment and static mixers and the need for equipment flushing solvents have made Tuffbond® 395 more practical.

ReAct® 795 is a tough acrylic adhesive designed primarily for securing of ceramic permanent magnet segments in motor magnet bonding applications. This adhesive has also found wide acceptance in a variety of structural bonding applications due to its versatile performance capabilities. ReAct® 795 has demonstrated the ability to provide high tensile strength while maintaining excellent product flexibility. This results in tough, durable bonds with outstanding impact and peel resistance. This tough acrylic is a single component, room temperature curing adhesive which is used in conjunction with Activator 47. Additionally, exposure to a high intensity UV light will cure this adhesive to a dry, hard surface. ReAct® 795 is similar in function to Loctite A533 and Loctite AA332 and delivers high shear strength and tensile strength. One of its primary uses is securing permanent magnets in motor magnet bonding applications. Recomended Applications: Furniture | Elevators | Automotive Applications | Permanent Motor Magnets | Speakers | Generators | Bonding Flywheels | Sensors |

UV Curable Cylinlock® 820 is a fast curing, high-strength anaerobic adhesive designed to retain and seal cylindrical assemblies. Curing occurs when adhesive is confined between mating surfaces. The cured adhesive is a thermoset plastic suitable for exposure to most solvents. Augments or replaces press fits, set screws, pins and other mechanical retaining methods. Avoids heavy press fits due to rapid cure. Cylinlock® 820 cures quickly at room temperature without the need for surface activators or heat to join cylindrical assemblies. Fixturing strength develops in five minutes or within 15 seconds by exposing the edge fillets to high intensity long wavelength UV light (365 nm). Full strength will be reached in 24 hours.

Self Locker 523 is a pre-applied micro-encapsulated adhesive for threaded fasteners. Self Locker 523 stays dry-to-the-touch until the shearing action of an engaging nut applied to the coated bolt causes the capsules to break allowing the adhesive to cure. This material securely locks and seals against vibration loosening and fluid leakage.

Quantum® 150 UV is a single component, solventless, room temperature curing cyanoacrylate adhesive with light curing property. The presence of surface moisture and/or light (UV or Visible light) commence the cure of the adhesive. Quantum® 150 UV develops handling strength within seconds and full functional strength within minutes. Quantum 150 UV can bond a wide variety of surfaces including thermoplastics, elastomers. Product Benefits: • Rapid Cure: forms a strong bond by moisture curing at room temperature in less than a minute with contact pressure. • Light curing property: can be easily cured by irradiation with light. Blushing can be also prevented by UV curing. • Surfaces: will bond almost any combination of similar or dissimilar materials. • Easy Use: single component feature, eliminates any mixing. • Due to low viscosity, it can penetrate gaps between surfaces.

CM8005 is a single-component room temperature cure gel-like anaerobic gasketing compound formulated to provide instant sealing capabilities. Once cured between mating metal flanges and filling voids in the surface, CM8005 provides a thin, flexible, solvent and temperature resistant seal.

Ammunition Primer Sealant 34194 is a single component 100% solid system offering a tough, dry coating with superior chemical and environmental resistance after cure. Ammunition Primer Sealant 34194 will cure rapidly when exposed to high intensity U.V. light. This coating is formulated to migrate rapidly resulting in complete coverage of the gap. The fluorescent sealant will offer an easy inspection using standard vision system.

Grenade Igniter Case Sealant 47422 is a single component UV and anaerobic curing adhesive. Grenade Igniter Case Sealant 47422 is a low viscosity penetrating material that works by capillary action between mating surfaces. The cured adhesive is a high performance thermoset plastic suitable for temperatures up to 400°F (204°C). Grenade Igniter Case Sealant 47422 cures quickly at room temperature without the need for surface activators or heat to join assemblies. Fixturing strength develops in five minutes, or within 10 seconds by exposing the edge fillets to high intensity long wavelength UV light (365 nm). Full strength will be reached in 24 hours. Cure fillets at UV light irradiances above 60 milliwatts/cm² to insure proper cure.

Blank Ammunition Sealant 48641 Is a medium viscosity, UV and LED curable compound formulated to provide high performance, fast curing, coating and sealing of ammunition blank tips. This product is also used for shallow potting applications.

External Ammunition Sealant 76084 is a single component U.V. anaerobic sealant. 76084 has a low viscosity penetrating material capable of bonding and sealing primers and case mouths in ammunition. This Sealant is specially formulated for Ammunition that needs greater fit tolerance and higher bullet pull forces. Curing occurs when the adhesive is applied between mating surfaces. The cured adhesive is a thermoset plastic and endures exposure to most solvents. Ammunition Sealant 76084 cures quickly at room temperature without the need for surface activators or heat to seal primer and case mouth assemblies. Fixturing strength develops in two to three minutes, Full strength will be reached in 24 hours. Cure fillets at UV light irradiances above 100 milliwatts/cm² to insure proper cure.

External Ammunition Sealant 76041 is a single component U.V. anaerobic sealant. 76041 has a low viscosity penetrating material capable of bonding and sealing primers and case mouths in ammunition. It is specially formulated for pre-assembled components; it works by capillary action sealing ammunition and improving bullet pull force. Curing occurs when the adhesive is applied between mating surfaces. The cured adhesive is a thermoset plastic and endures exposure to most solvents. Ammunition Sealant 76041 is a low strength sealant that cures quickly at room temperature without the need for surface activators or heat to seal primer and case mouth assemblies. Fixturing strength develops in two to five minutes, Full strength will be reached in 24 hours. Cure fillets at UV light irradiances above 100 milliwatts/cm² to insure proper cure.

External Ammunition Sealant 76061 is a single component U.V. anaerobic sealant. 76061 has a low viscosity penetrating material capable of bonding and sealing primers and case mouths in ammunition. It is specially formulated for pre-assembled components; it works by capillary action sealing ammunition and improving bullet pull force. Curing occurs when the adhesive is applied between mating surfaces. The cured adhesive is a thermoset plastic and endures exposure to most solvents. Ammunition Sealant 76061 is a medium strength sealant that cures quickly at room temperature without the need for surface activators or heat to seal primer and case mouth assemblies. Fixturing strength develops in two to five minutes, Full strength will be reached in 24 hours. Cure fillets at UV light irradiances above 100 milliwatts/cm² to insure proper cure.

External Ammunition Sealant 76060 is a single component U.V. anaerobic sealant. 76060 has a low viscosity penetrating material capable of bonding and sealing primers and case mouths in ammunition. It is specially formulated for pre-assembled components; it works by capillary action sealing ammunition and improving bullet pull force. Curing occurs when the adhesive is applied between mating surfaces. The cured adhesive is a thermoset plastic and endures exposure to most solvents. Ammunition Sealant 76060 is a medium strength sealant that cures quickly at room temperature without the need for surface activators or heat to seal primer and case mouth assemblies. Fixturing strength develops in two to five minutes, Full strength will be reached in 24 hours. Cure fillets at UV light irradiances above 100 milliwatts/cm² to insure proper cure.
